Spatial audio-visual reasoning

FloorSAV

Elucidating Spatial Audio-Visual Context
with 2D Floormap for AV-LLMs

Kyeong-Rae Kim Sungnyun Kim^†Tae-Hyun Oh^†

Korea Advanced Institute of Science and Technology

† Corresponding authors

Ground what models see and hear
in a shared spatial context.

A dynamic 2D floormap brings geometry, motion, sound, and object landmarks into one view—so audio-visual models can reason about viewpoints, places, and paths.

Training-freeTask-agnosticSingle inference

One scene. Two complementary views.20 fps · source footage

Egocentric videoWhat the camera sees

RGB + Audio

FloorSAV mapSpatial context over time

Geometry + Motion + Sound

01:00 / 01:20

Original RGB frames + original FloorSAV map rendering at 20 fps.

CameraSound estimateTrajectory

The idea

Give the model a map.
Let it connect the evidence.

A first-person video shows only part of a changing scene. FloorSAV adds a top-down 2D floormap that brings geometry, camera motion, spatial sound, and object landmarks into one shared frame.

The audio-visual language model (AV-LLM) reads both synchronized videos, with a floormap interpretation guide, to answer spatial questions.

Training-free

Use an existing AV-LLM without fine-tuning its weights.

Task-agnostic

Use the same spatial representation for viewpoints, places, and paths.

Single inference

After preparing the scene map, the AV-LLM reasons over both streams in one call.

Read the abstract +

While 3D spatial reasoning in dynamic egocentric environments is crucial for embodied intelligence, audio-visual large language models (AV-LLMs) lack explicit mechanisms to process and internalize global geometry directly from raw sensory streams. Existing approaches either require costly fine-tuning or underutilize the model’s cross-modal reasoning capacities. In this paper, we propose FloorSAV, a novel framework that explicitly grounds spatial audio-visual context by rendering a dynamic 2D floormap. By integrating 3D point clouds, camera trajectories, spatial audio cues, and semantically grounded object landmarks, we inject this floormap into the AV-LLM as a synchronized stream with an egocentric video. AV-LLMs utilize their multi-modal capabilities to jointly reason over visual, auditory, and geometric cues in a single inference with floormap interpretation guidance. We further introduce SAVED-Bench (Spatial Audio-Visual Egocentric Benchmark with Dynamic Agents), constructing essential tasks of spatial capability in real-world scenarios: dynamic relativity, regional, and path reasoning QAs. FloorSAV improves AV-LLMs’ spatial reasoning on various tasks from both SAVED-Bench and SAVVY-Bench. Studies with ground-truth floormaps demonstrate the substantial potential of FloorSAV with accurate spatial information.

01 / See it in action

See the scene. Follow the spatial reasoning.

Three spatial questions, explained one moment at a time.
Watch the full scene with brief pauses at key moments. Pause longer or jump to the next step whenever you like.

Regional reasoning

You hear them. But where are they?

Highlights

When “I mean, I like beef rare” is spoken, which area of the home is the other person in?

Paused · after departure01:42.00

First-person videoSource 01:00

2D floormapMatched source time

00:00 / 00:20

Step 1 of 4

Highlights pause for 6–8 seconds before continuing. Switching steps keeps your play or pause setting.

Guided summaries of selected model explanations. Numbered markers connect the text to the evidence; they are presentation aids. Green dots in the original maps are sound estimates, not tracked people.

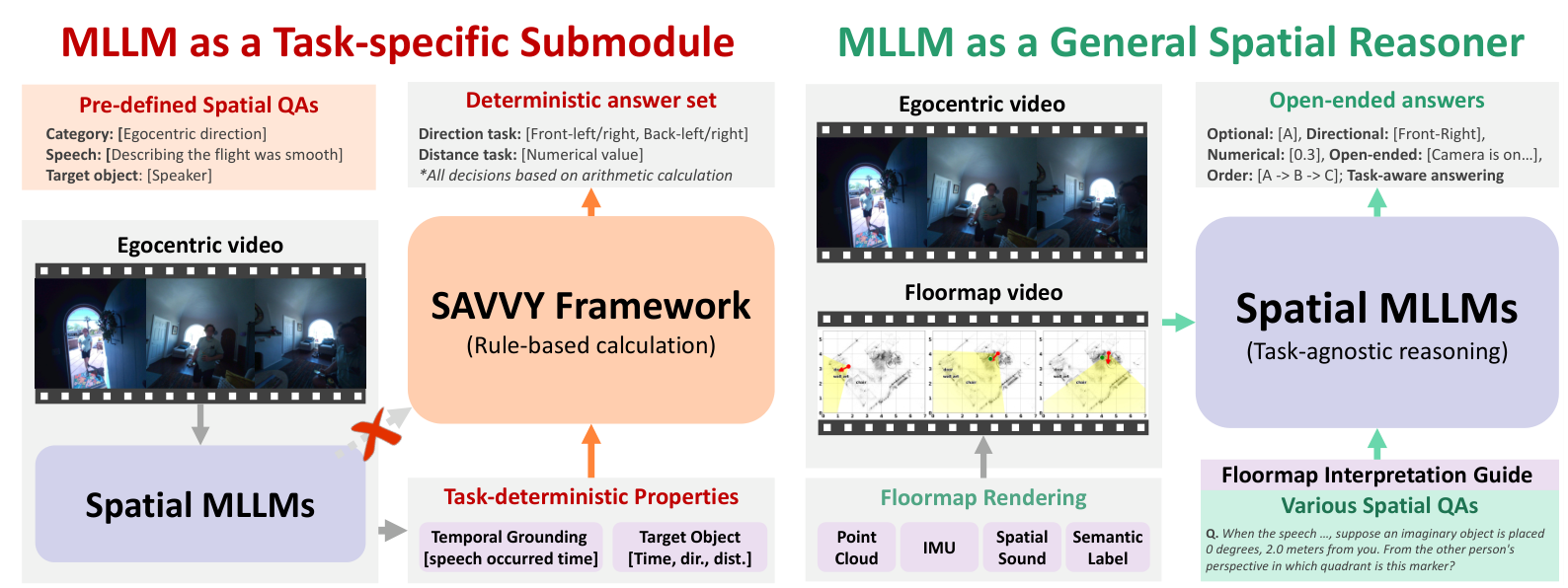

02 / Method

From sensory streams
to a shared spatial reference.

Project the scene into 2D. Add motion, sound, and semantics.
Feed both synchronized videos and a floormap interpretation guide to the AV-LLM.

Sensor inputs → Floormap videoInteractive illustration

3D Point CloudRoom and object structure

Camera + IMUPosition, direction, and motion

Microphone ArrayEstimated sound position

RGB Frames + VLMObject names and locations

3D Points

Geometry provided by AEA

3D POINT CLOUD01 / 05

CameraField of viewTrajectorySound

Project the 3D points

Flatten the scene onto a top-down metric grid.

00:00 / 00:20

Illustration of scene preparation. The qualitative videos above use recorded scene data.

Two synchronized inputsFirst-person video + audio
2D floormap video+ Question & floormap interpretation guide

One inferenceAV-LLMJoint audio-visual-spatial reasoning

Spatial answerViewpoints.
Places. Paths.

Explore the method figure ↗

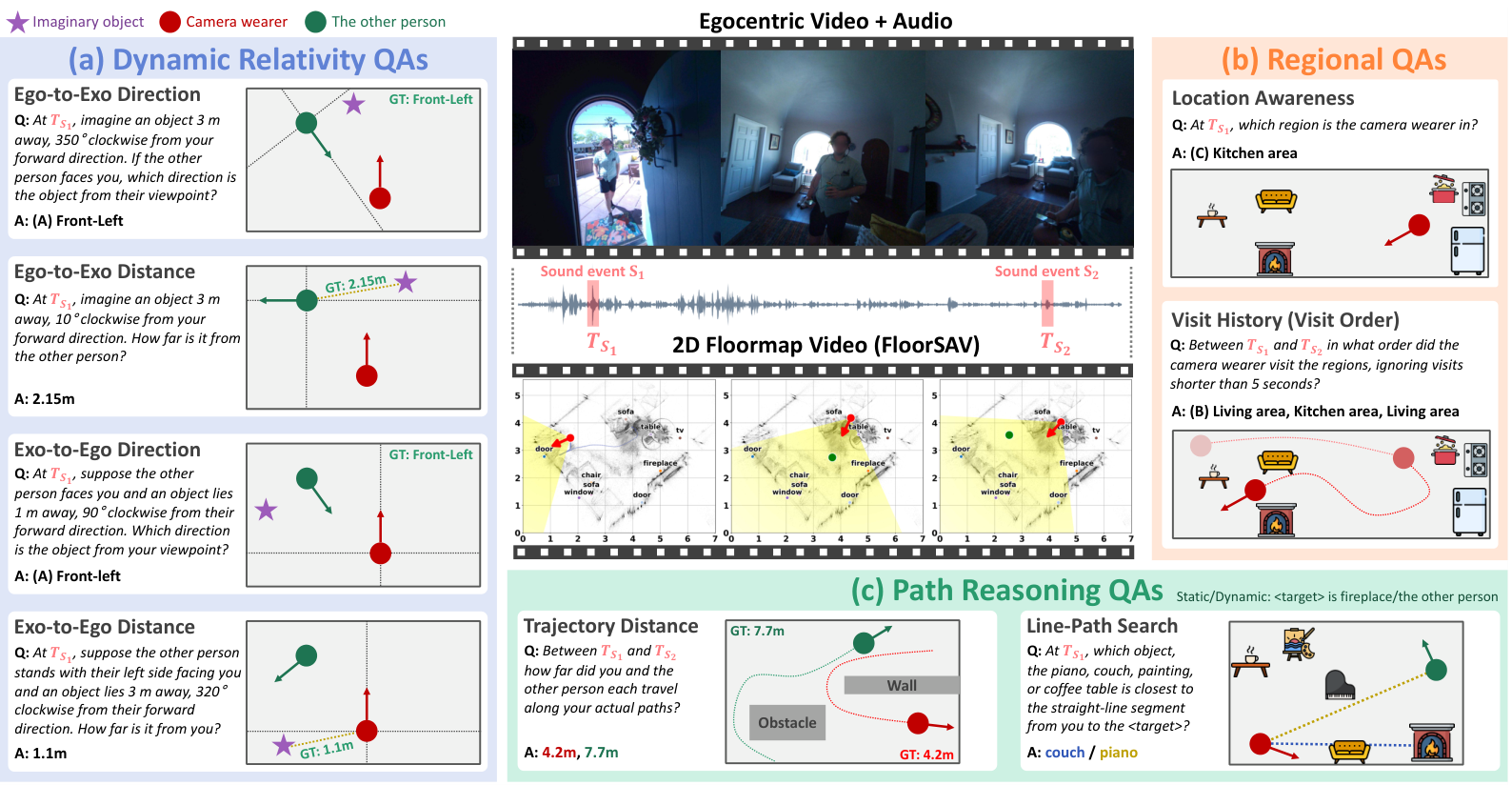

03 / SAVED-Bench

Spatial questions.
Dynamic people.

A benchmark for reasoning about viewpoints,
places, and movement in real egocentric scenes. We introduce SAVED-Bench to test reasoning with dynamic agents.

1,988Questions

55Recordings

9Tasks

800 questions · 4 tasks

Dynamic relativity

Reason about direction and distance across the camera wearer’s and another person’s viewpoints.

“From their viewpoint, where is the object?”

Ego → Exo · Direction
Place an imagined object relative to the wearer, then identify its direction from the other person’s viewpoint.
Ego → Exo · Distance
Estimate the distance from the other person to that imagined object.
Exo → Ego · Direction
Place an imagined object in the other person’s frame, then identify its direction from the wearer’s viewpoint.
Exo → Ego · Distance
Estimate the distance from the wearer to the object described in the other person’s frame.

592 questions · 2 tasks

Regional reasoning

Identify a person’s location and the places they visited during a sound event.

“Which area was the speaker in?”

Location Awareness
Identify the region occupied by the wearer or the other person at a target moment.
Visit History
Recover the order of visited regions, or identify a region not visited during the sound-event interval.

596 questions · 3 tasks

Path reasoning

Find objects near a finite path and estimate how far a person traveled.

“What would I pass on the way to the couch?”

Line-Path Search · Static
Find the offered object closest to the finite straight path from the wearer to a target object.
Line-Path Search · Dynamic
Find the offered object closest to the straight path between the wearer and the other person.
Trajectory Distance
Estimate how far each person traveled over the interval, following their trajectories rather than the straight-line displacement.

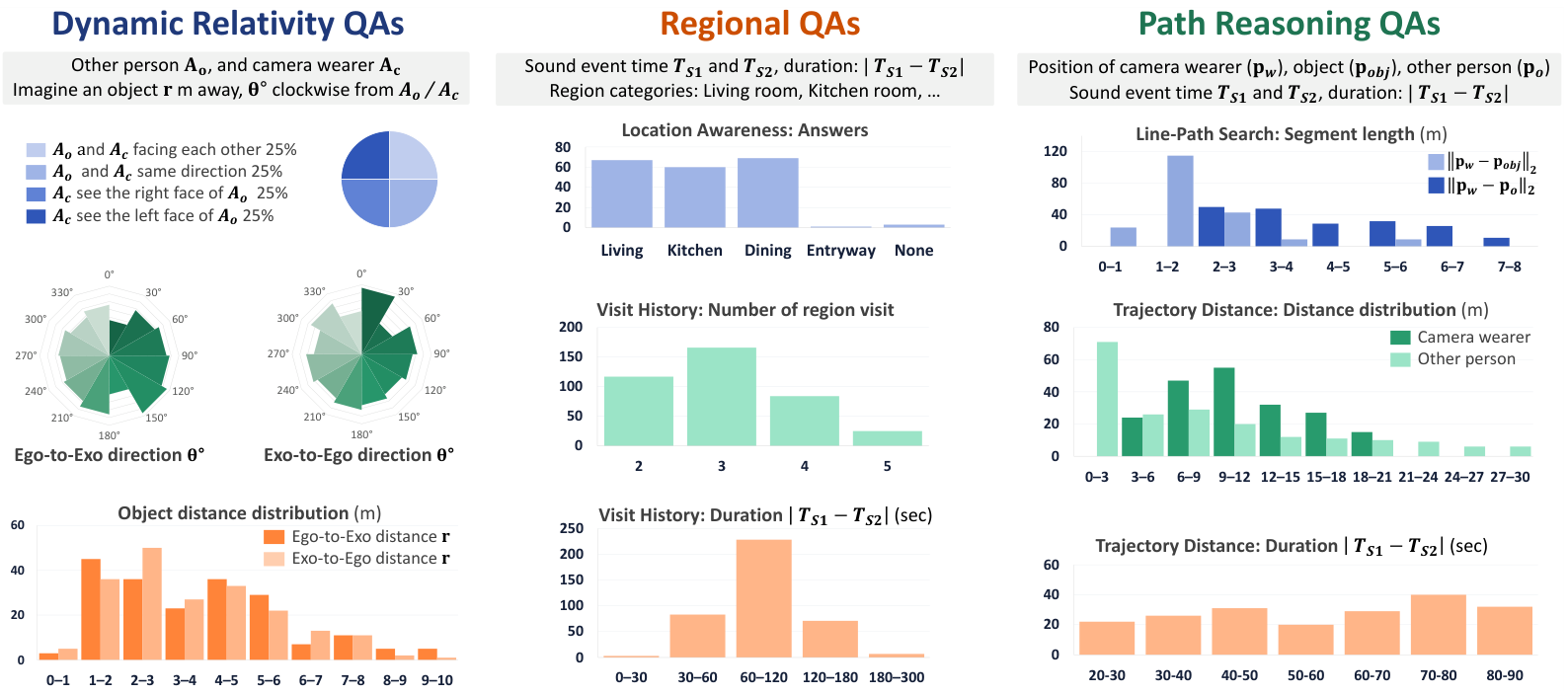

Task definitions and benchmark distributions ↗

04 / Results

Better spatial context.
Stronger spatial reasoning.

SAVED-Bench · Gemini-3.6-Flash · No fine-tuning

Across spatial skills

A wider view of spatial reasoning.

GT map studies

Compare eight skill groups across SAVED-Bench and SAVVY-Bench. Add ground-truth maps to explore the role of spatial accuracy.

Ego / Exo: SAVVY-Bench · Gemini-2.5-Pro. Other axes: SAVED-Bench · Gemini-3.6-Flash. Paired tasks are averaged. Each axis starts at 0 and uses its labeled maximum; scales stay fixed when GT maps are toggled. Sources: paper Tables 1 & 4.

Overall · 1,988 questions58.3 65.3

+7.0 points with FloorSAV.
All three category averages improve.

SAVED-Bench scores · 0–100 · higher is better

Current SAVED-Bench release: accuracy or AbsMRA scores on a 0–100 scale. Higher is better.
Task	QAs	Baseline	FloorSAV	Δ points	Partial GT map	Full GT map
Ego-to-Exo Direction	200	56.0	65.0	+9.0	76.5	72.0
Ego-to-Exo Distance · AbsMRA	200	34.3	34.6	+0.3	47.9	45.9
Exo-to-Ego Direction	200	32.0	50.5	+18.5	50.5	53.5
Exo-to-Ego Distance · AbsMRA	200	46.4	44.7	-1.7	57.5	55.0
Dynamic Relativity Overall	800	42.2	48.7	+6.5	58.1	56.6
Location Awareness	200	92.0	94.5	+2.5	96.0	96.5
Visit History	392	86.7	92.3	+5.6	89.8	97.2
Regional Overall	592	89.4	93.4	+4.0	92.9	96.8
Line-Path Search (static)	196	60.2	77.0	+16.8	78.1	77.6
Line-Path Search (dynamic)	200	73.0	78.0	+5.0	87.5	91.0
Trajectory Distance · AbsMRA	200	16.9	25.0	+8.1	25.0	28.2
Path Reasoning Overall	596	50.0	60.0	+10.0	63.5	65.6
Overall · QA-weighted average	1988	58.3	65.3	+7.0	69.8	71.3

A clearer spatial reference helps across viewpoints, regions, and paths.

Accuracy / AbsMRA · 0–100, higher is better. Category averages weight tasks equally; the headline overall score weights QAs.

Download reported results ↓

Evaluation details +

SAVED-Bench values match the released Table 1 results at the paper’s one-decimal precision. Category and overall averages are preserved as reported. Displayed gains are differences between these reported values.

Direction, region, and line-path tasks use accuracy; distance tasks use AbsMRA. All category averages improve; Exo-to-Ego Distance decreases from 46.4 to 44.7.

The radar averages direction and distance for each viewpoint pair, and static and dynamic tasks for Line-Path Search. It groups different benchmarks and models for the overview; it is not a single-model aggregate score.

Looking ahead

Better maps help.
Spatial reasoning is still hard.

FloorSAV improves performance on SAVED-Bench and SAVVY-Bench. It is not error-free: sound localization, long video contexts, and map reading remain challenging. Ground-truth map studies show further gains when spatial information is more accurate.

Build on this work

Citation

FloorSAV · Kim, Kim & Oh · 2026

@misc{kim2026floorsav,
  title = {FloorSAV: Elucidating Spatial Audio-Visual
           Context with 2D Floormap for AV-LLMs},
  author = {Kim, Kyeong-Rae and Kim, Sungnyun and Oh, Tae-Hyun},
  year = {2026},
  url = {https://byulharang.github.io/FloorSAV/}
}
